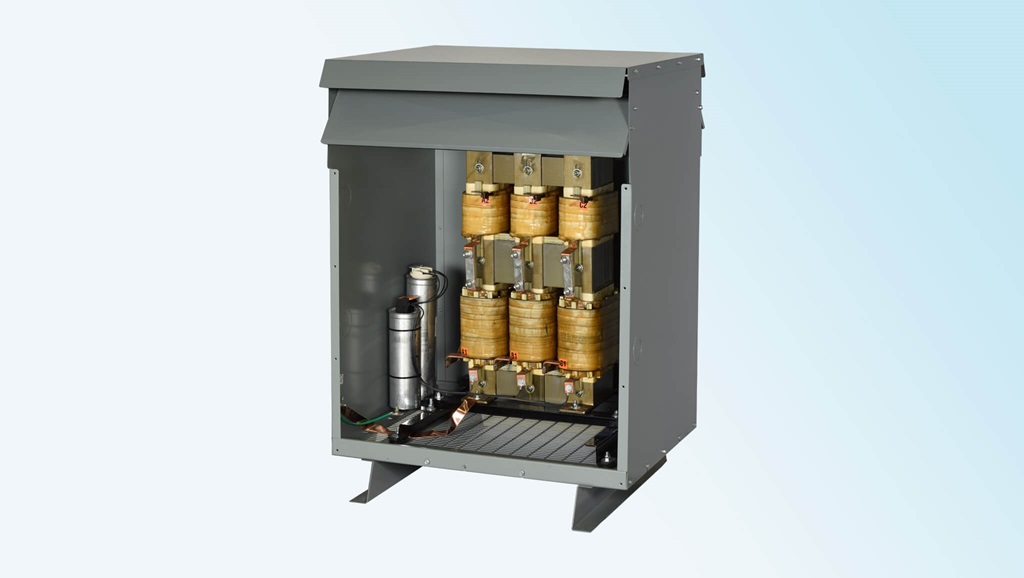

Harmonic Filters
Our Harmonic Filters are engineered to reduce electrical harmonics, improve
power
quality, and ensure compliance with international standards. Designed for industrial,
commercial,
and utility applications, these filters protect sensitive equipment, enhance system
efficiency,
and extend the life of critical electrical assets.
With robust construction and proven performance, our harmonic filtering solutions are ideal
for
modern power systems dominated by non-linear loads such as VFDs, UPS systems, rectifiers,
and
inverters.
What Are Harmonic Filters?
Harmonic Filters are specialized power quality devices used to mitigate harmonic distortion
in
electrical networks. Harmonics generated by non-linear loads can lead to overheating, power
losses, capacitor failures, nuisance tripping, and reduced equipment lifespan. Our harmonic
filters effectively suppress these unwanted harmonics while maintaining a stable and
efficient
power system.
Key Features & Benefits
- Effective Harmonic Reduction: Minimizes Total Harmonic Distortion (THD)
in current and voltage
- Improved Power Factor: Enhances overall system power factor while
filtering harmonics
- Protection of Equipment: Prevents overheating and premature failure of
transformers, capacitors, and cables
- Energy Efficiency: Reduces power losses and improves system efficiency
- Compliance with Standards: Designed to meet IEEE 519, IEC, and utility
harmonic limits
- Robust & Reliable Design: Suitable for continuous operation in
demanding industrial environments
Types of Harmonic Filters Offered
Passive Harmonic Filters
- Tuned for specific harmonic frequencies
- Cost-effective and highly reliable
- Ideal for stable load conditions
Active Harmonic Filters
- Real-time harmonic compensation
- Adaptive to changing load profiles
- Compact and highly efficient solution
Hybrid Harmonic Filters
- Combination of passive and active filtering
- Optimized performance with reduced cost
Applications
Our harmonic filters are widely used in:
- Variable Frequency Drives (VFDs)
- UPS systems and data centers
- Solar and wind power systems
- Industrial automation and CNC machines
- Steel, cement, and chemical plants
- Commercial buildings and hospitals
Technical Specifications (Customizable)
- System Voltage: Low Voltage / Medium Voltage
- Frequency: 50 Hz / 60 Hz
- Harmonic Orders: 5th, 7th, 11th, 13th and customized
- Cooling: Natural or forced air
- Mounting: Panel-mounted or floor-mounted
- Protection: IP-rated enclosures available on request
